Aurum Vista Rack

Component Dimension (W x D x H in mm) Details
Overall Rack Size 1160 (W) x 310 (D) x 2400 (H) Full wall unit
Left Shutter Comp. 435 (W) x 310 (D) x 625 (H) Double shutter door
Center Open Comp. 450 (W) x 310 (D) x 450 (H) Open shelf with horizontal partitions
Right Top Shelf 350 (W) x 310 (D) x 275 (H) Open shelf section
Right Bottom Shelf 250 (W) x 310 (D) x 275 (H) Open or closed per design
Mid Shutter Comp. 350 (W) x 310 (D) x 625 (H) Single shutter vertical unit
Side Panel Thickness 20 mm Structural support on all ends
Shelf Thickness 18 mm Intermediate shelf thickness
Back Panel Thickness ~6 mm Standard backing board for enclosed units
Category:

Description

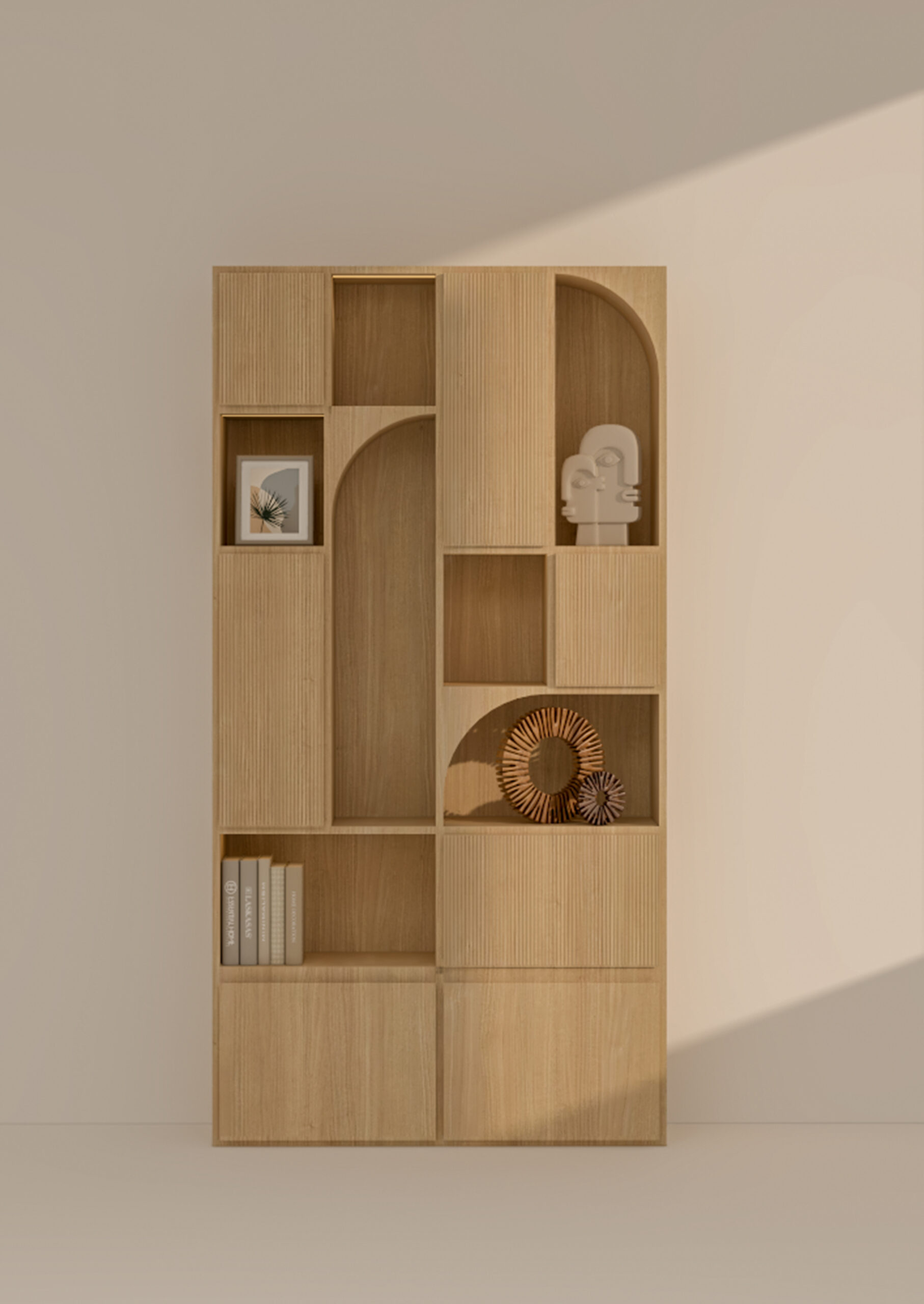

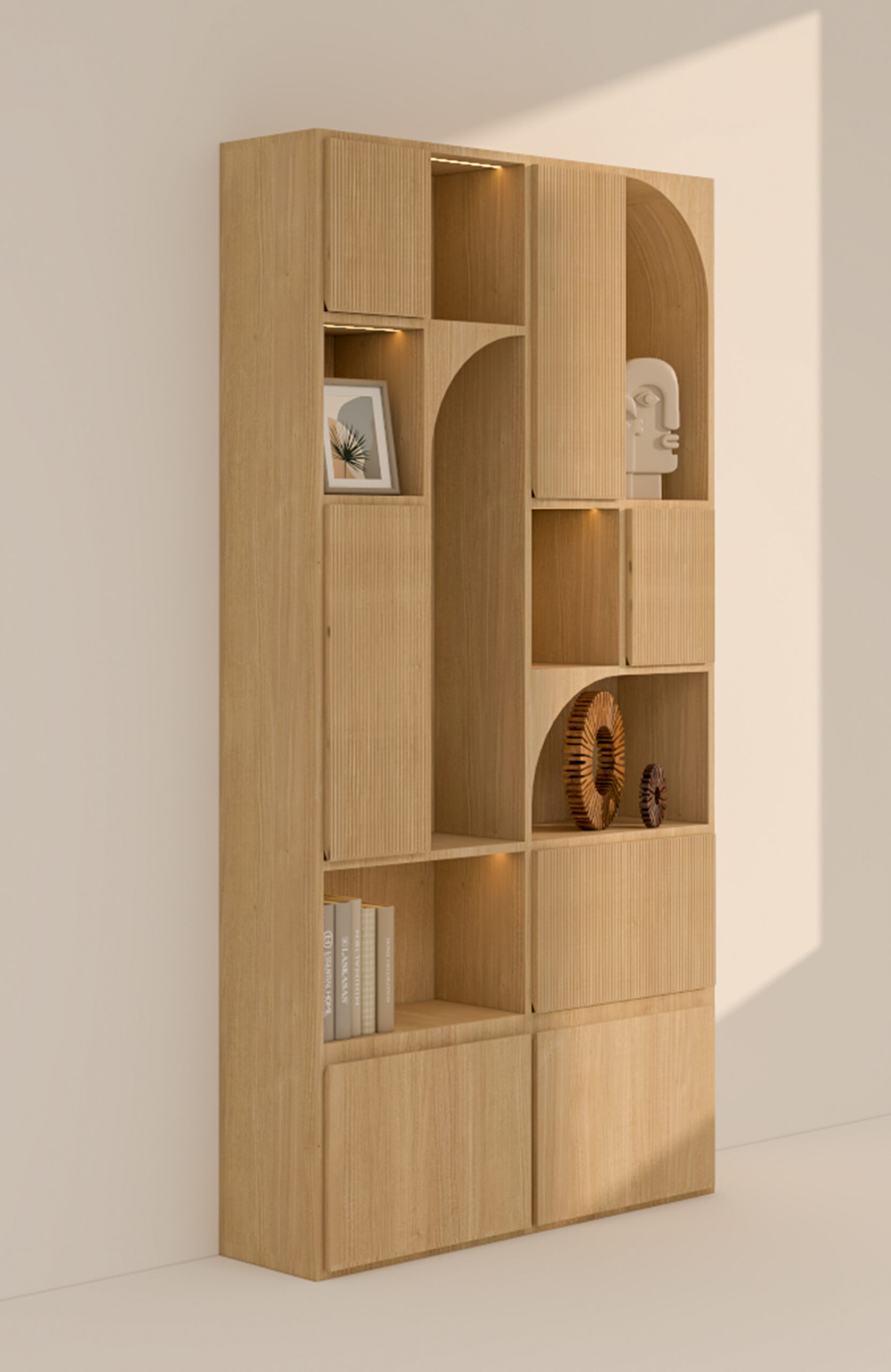

A modular  storage rack designed for multi-purpose usage in residential or office settings. It consists of closed compartments with shutters, open shelves, and a mix of vertical and horizontal divisions suitable for books, decor items, or files.

Additional information

Specifications

Main Structure (Body):
Material: HDHMR (High-Density High Moisture Resistant board)
Finish: Laminate finish (as per design selection)
Shutters (Front Panels):
Material: Wooden rack
Finish: Veneer with polish
Shelves:
Material: HDHMR
Finish: Laminate (matching or contrasting, based on aesthetic)
Back Panel:
Material: MDF or plywood (for enclosed compartments)
Finish: Painted or laminated (not visible externally)
Highlight Panel / Accent Finish:
Material: RM (Ready Made finish panel)
Finish: MTT GOLD (Merino 99998)

Edges and Joints:
Edge Banding: PVC edge band (matching laminate)
Joints: Concealed hardware (screws, dowels, or cam locks)
Instructions

Cleaning: Wipe with a soft, dry cloth. Avoid harsh chemicals.
Placement: Ideal for living rooms, study rooms, or office partitions. Ensure dry location to maintain material durability.
Maintenance: Polish veneer surfaces annually to maintain luster.
