Fern Nest Swing

Component Dimension (mm)
Overall Swing Height 2400
Overall Seat Length 1200
Seat Length 950
Seat Width 450
Mattress Thickness 75
Wooden Slab Thickness 50
Top Detail Thickness (Rope Sandwiching) 18 + 164 + 18 = 200
Mounting Rope Holes (Plan) Ø13 mm holes at 75 mm intervals
Rope Hole Count 5 per side (Detail A)
Rope Hole Pitch 75 mm
Category:

Description

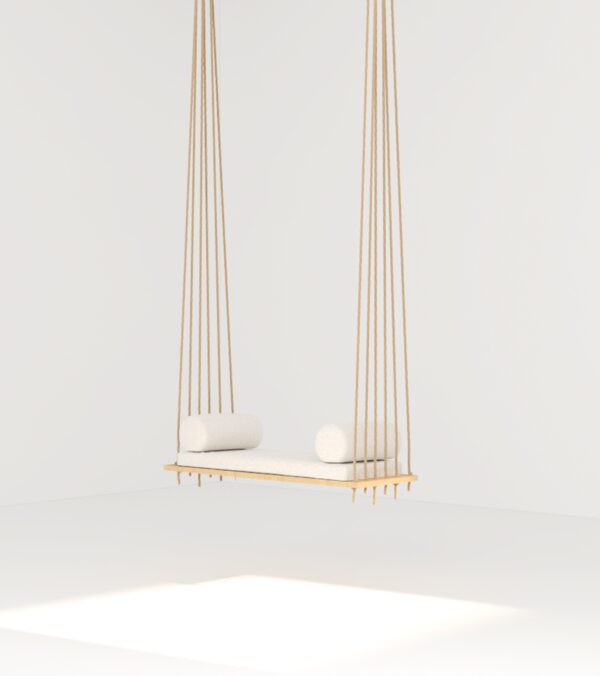

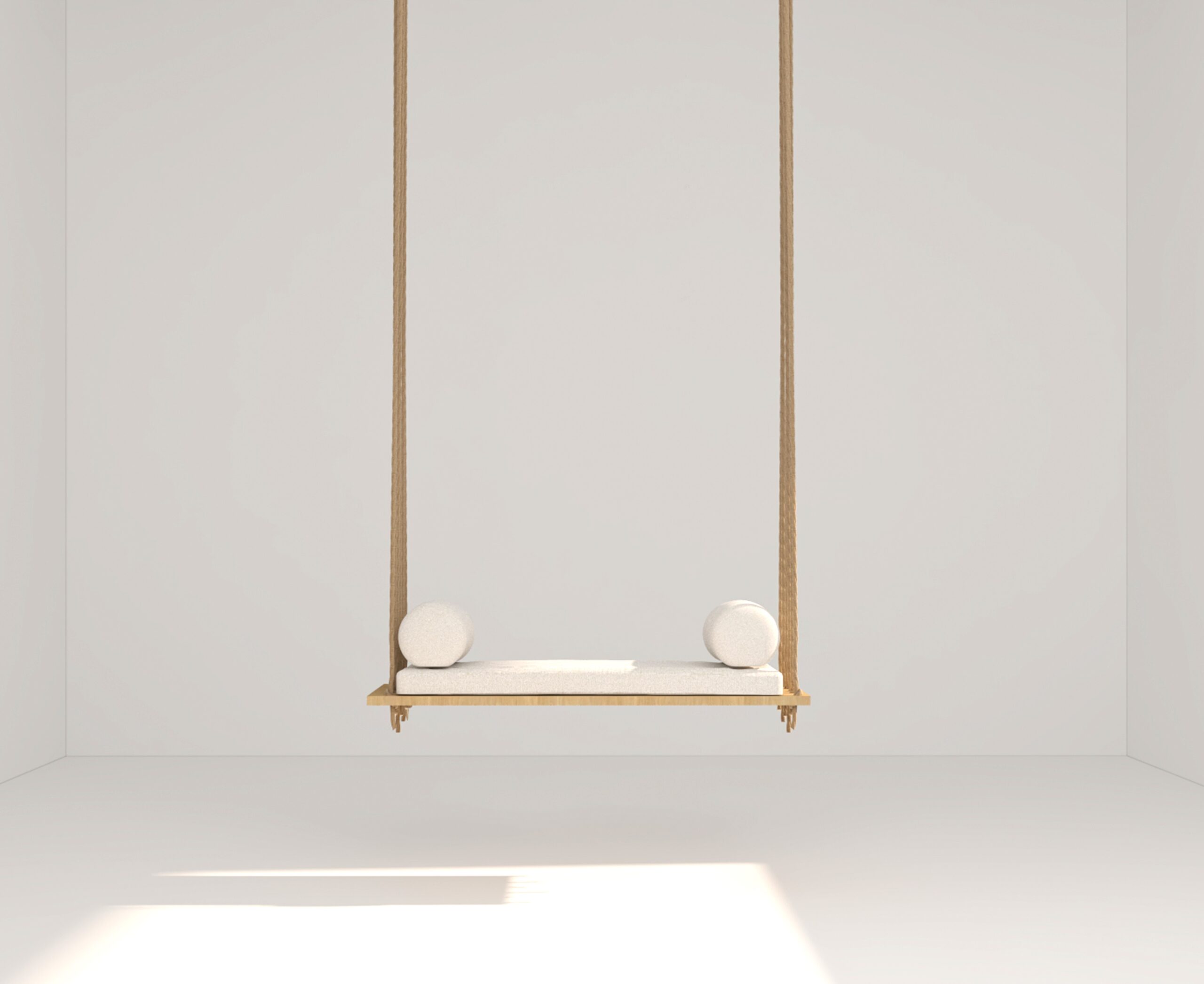

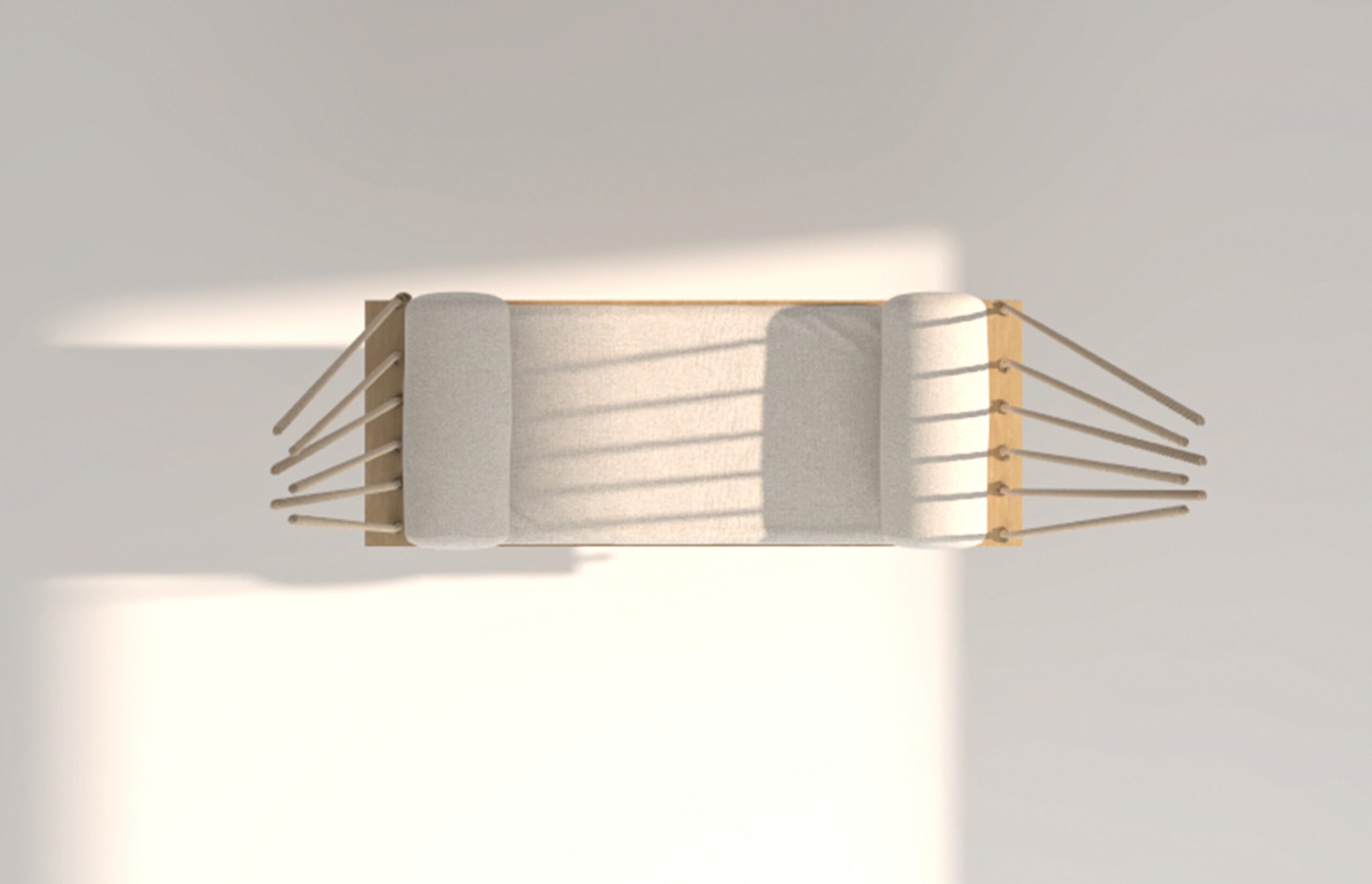

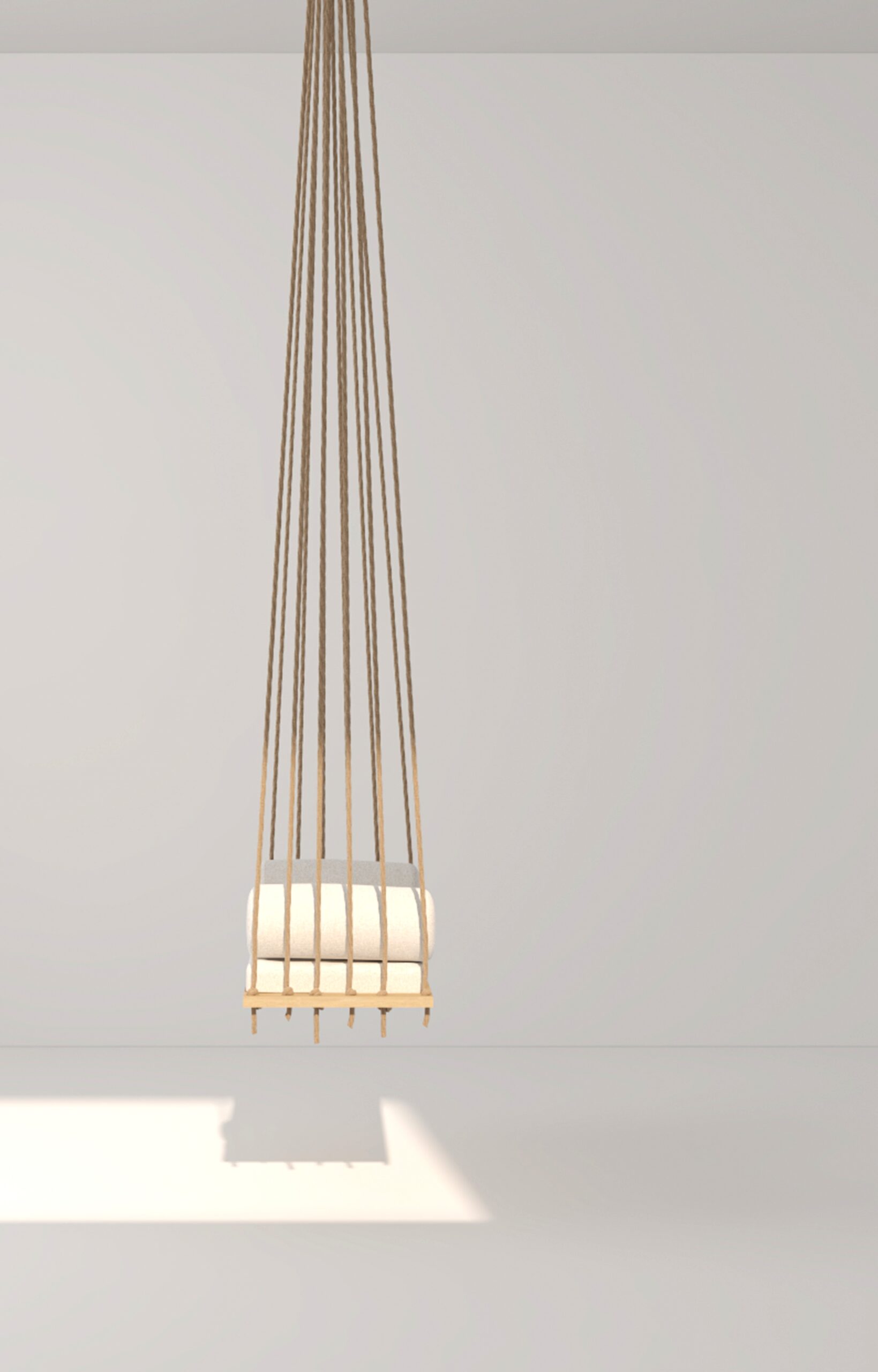

This clean-lined flat slab wooden swing is designed with simplicity, durability, and comfort in mind. The swing features a robust wooden slab base, suspended with rope and paired with a plush thick mattress for comfortable seating. Suitable for modern indoor or semi-outdoor setups, it incorporates detailed rope mounting and reinforced corners for strength, ensuring both function and elegance.

Additional information

Specifications

1. Frame Base
Material: Solid wooden slab
Finish: Wood grain finish as per selection
Overall Dimensions: 1200 mm (L) × 450 mm (W) × 50 mm (Thk)
Side Finish: Polished and rounded edges

2. Mattress
Material: PU Foam
Thickness: 75 mm
Upholstery: Fabric (user-selected)
Placement: Loose on top of slab

3. Suspension System
Type: Rope suspension
Rope Diameter: Not explicitly mentioned; recommended 16–18 mm
Mounting: Fasteners through pre-drilled Ø13 mm holes (Detail A)
Fixing: Sandwich detail using 18 mm + 50 mm + 18 mm wood layers (Detail B)

4. Fixing Details
Detail A: 5 equally spaced Ø13 mm rope holes at 75 mm pitch
Detail B: Total side profile thickness = 300 mm with rope running centrally
Installation

Mounting Height: Adjustable based on rope length; ceiling anchoring required
Recommended Ceiling Clearance: Minimum 2400 mm
Load Bearing: Ensure proper calculation based on fixing method and slab structure
Use: Best suited for covered balconies, indoor lounges, or verandahs
